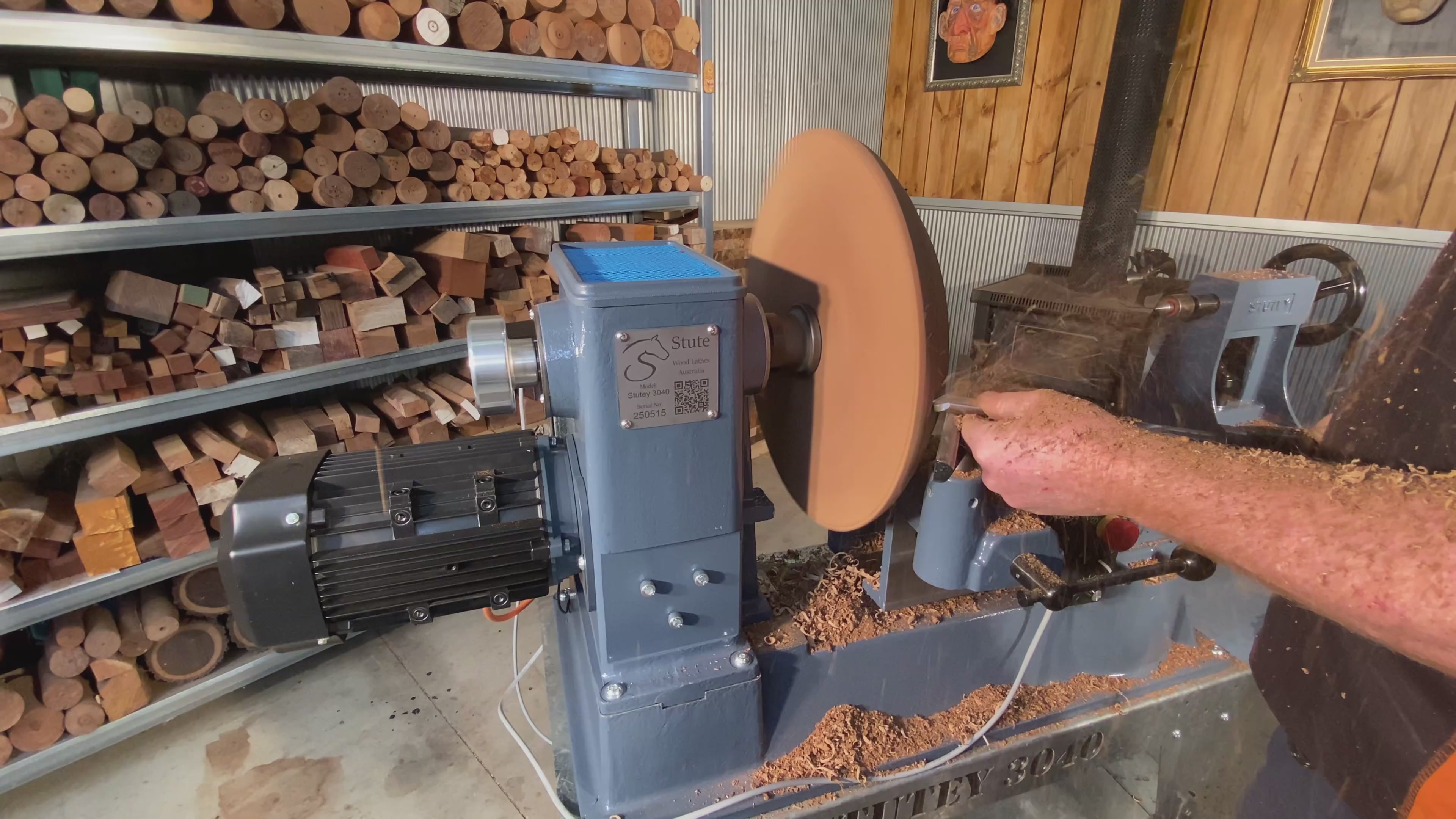

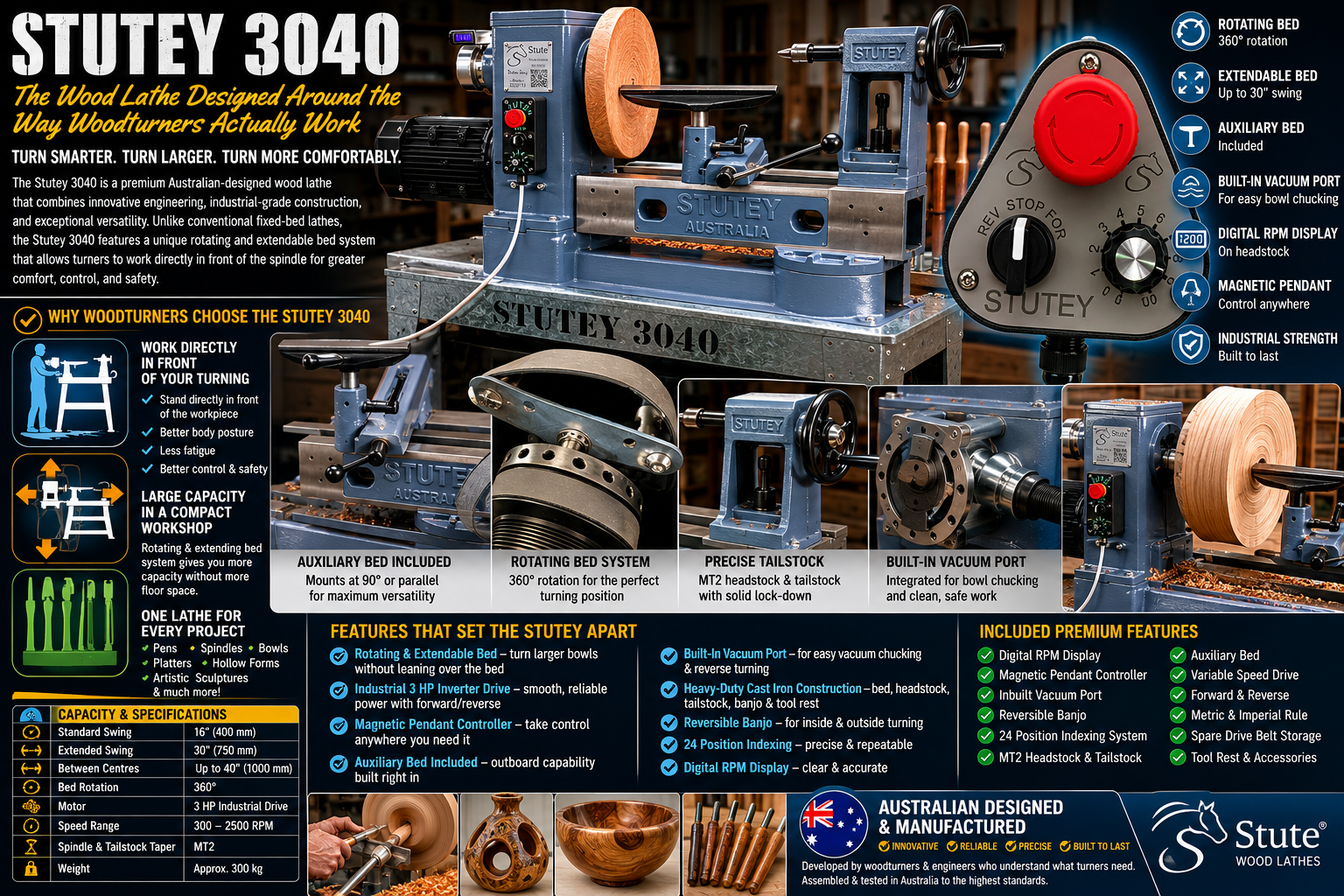

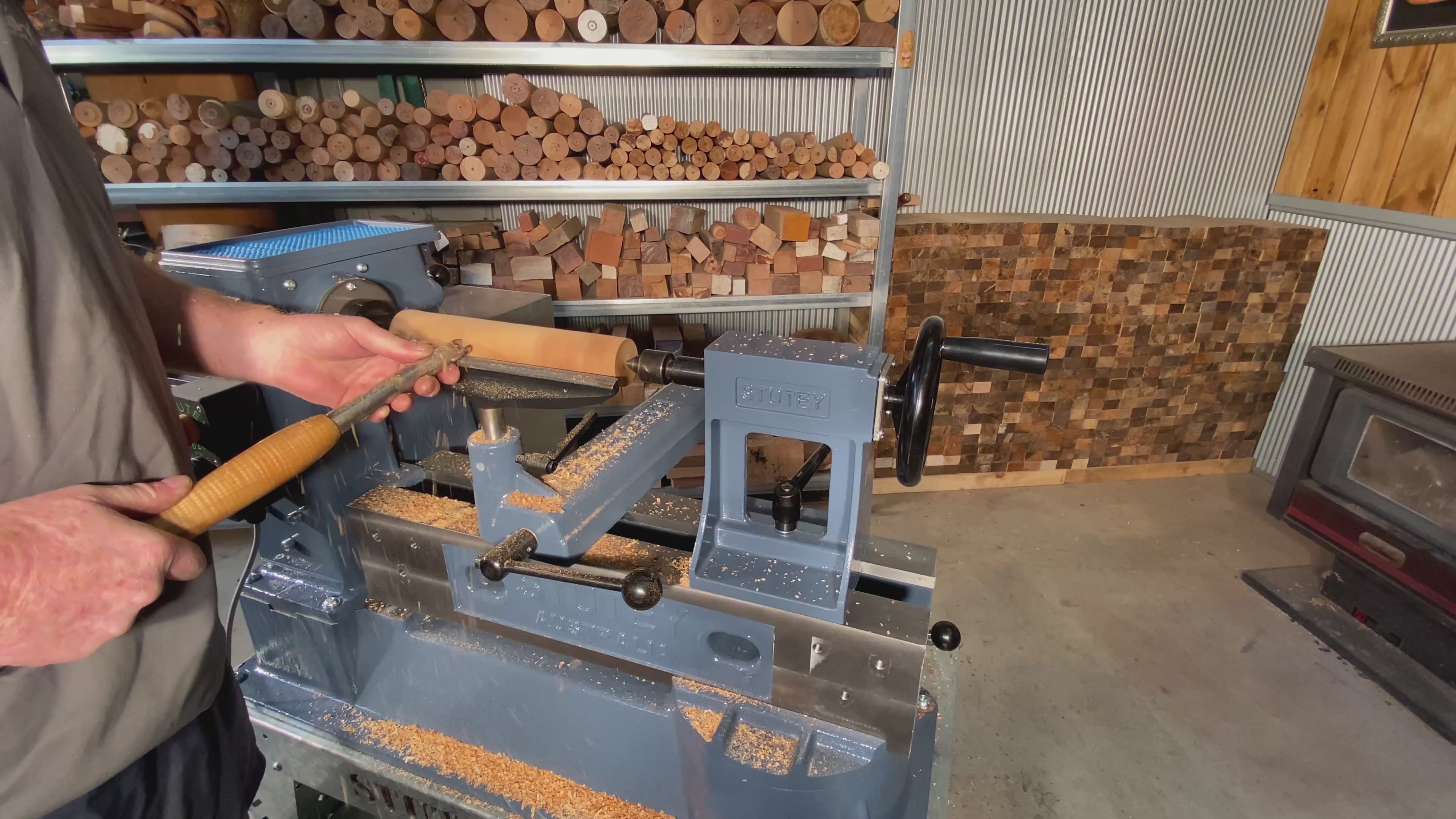

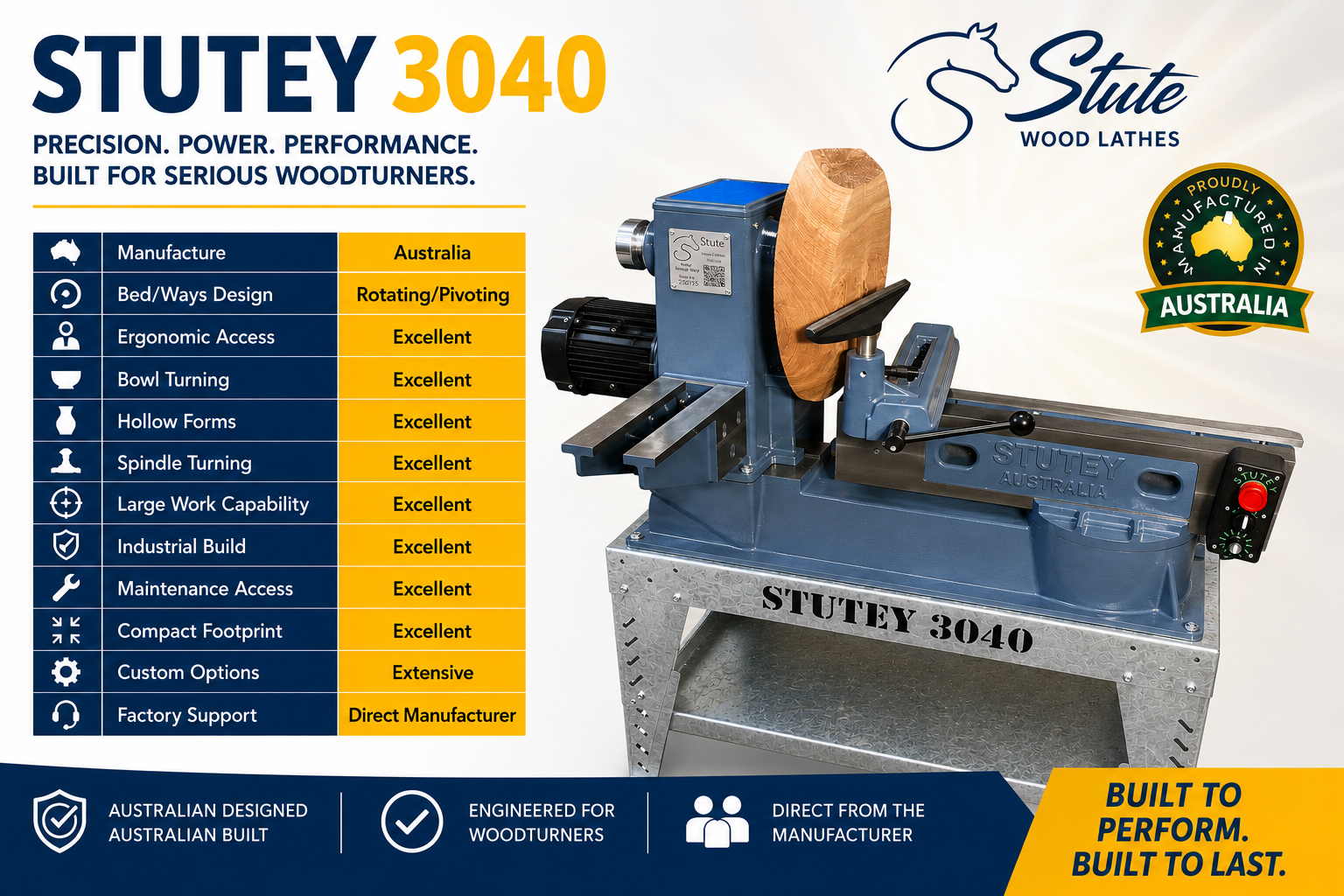

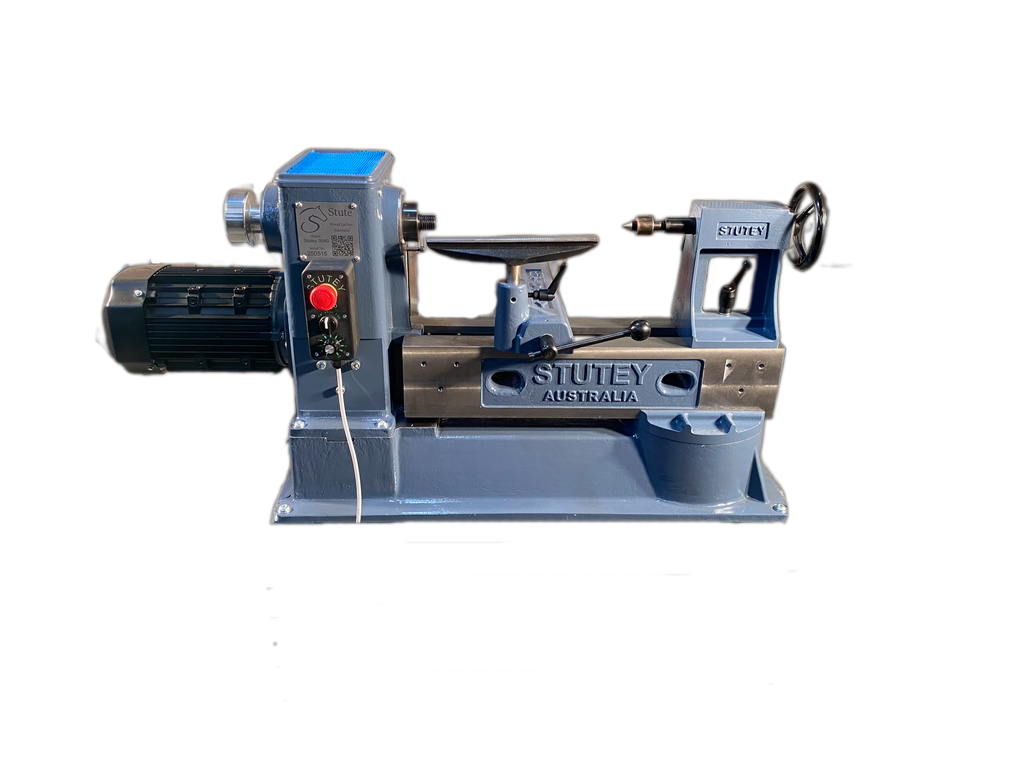

Stutey 3040 Lathe

The Stutey 3040 uses durable cast iron components and high grade steel.

Inbuilt Vacuum Port and 24 hole indexing wheel.

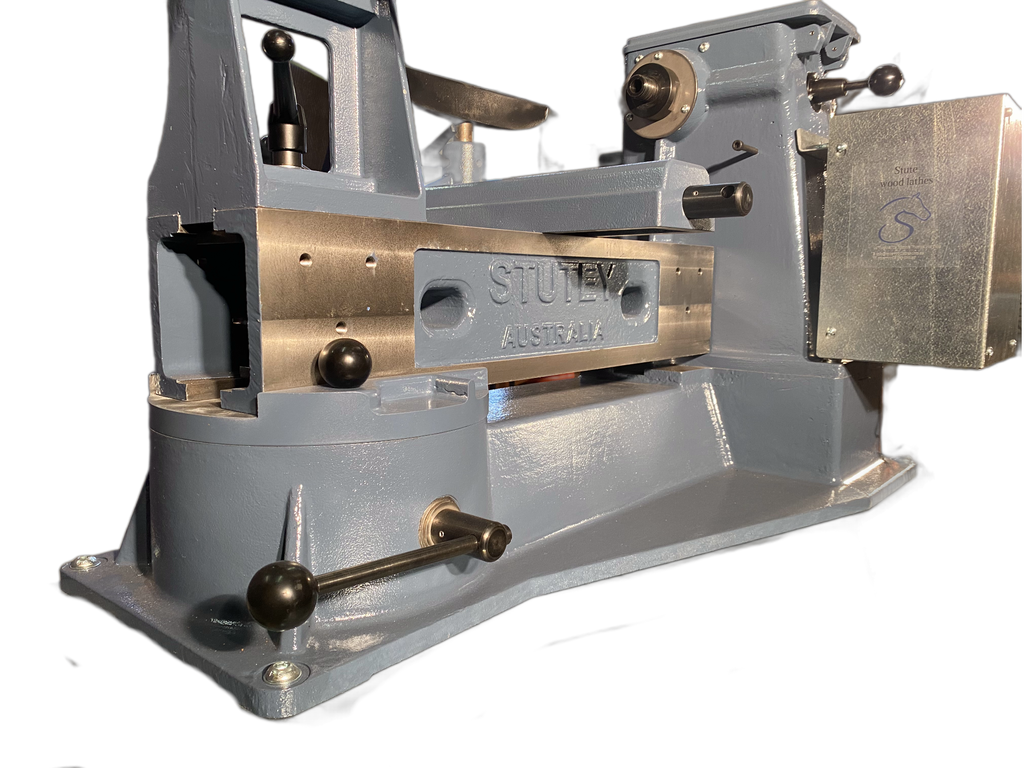

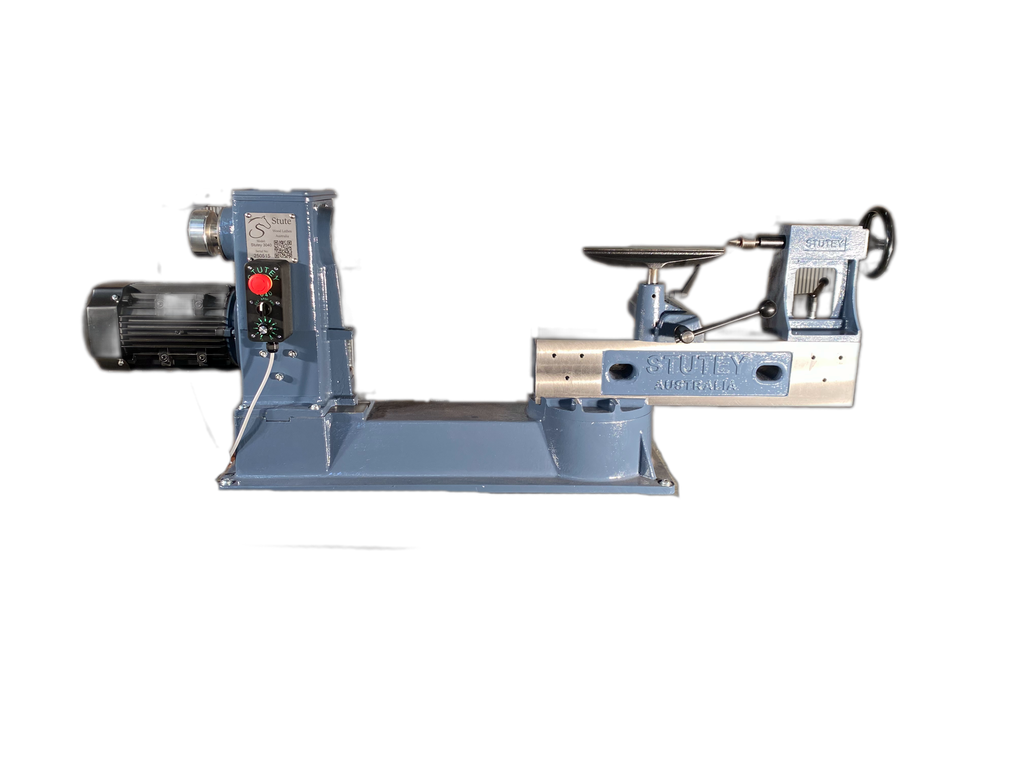

The bed on the Stutey lathe can extend or rotate to provide more positions to work.

A replacement belt is positioned in the head stock to provide an easy and simple change over.

A reversible banjo allows it to be used either on the main bed or the Auxiliary bed.

With 3 strong magnets on the back. The controller can be moved to suit any job.

2MT morse taper for the head and tail stock.

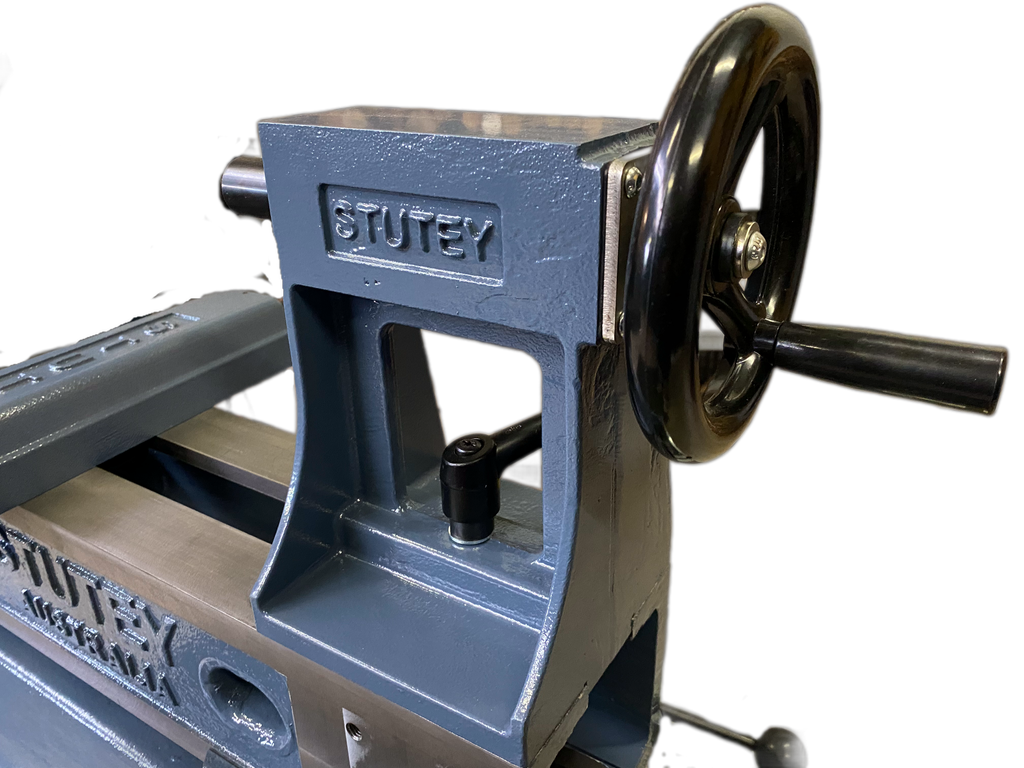

A ruler is attached to the top of the tail stock for easy calibration.

Digital readout for spindle RPM.

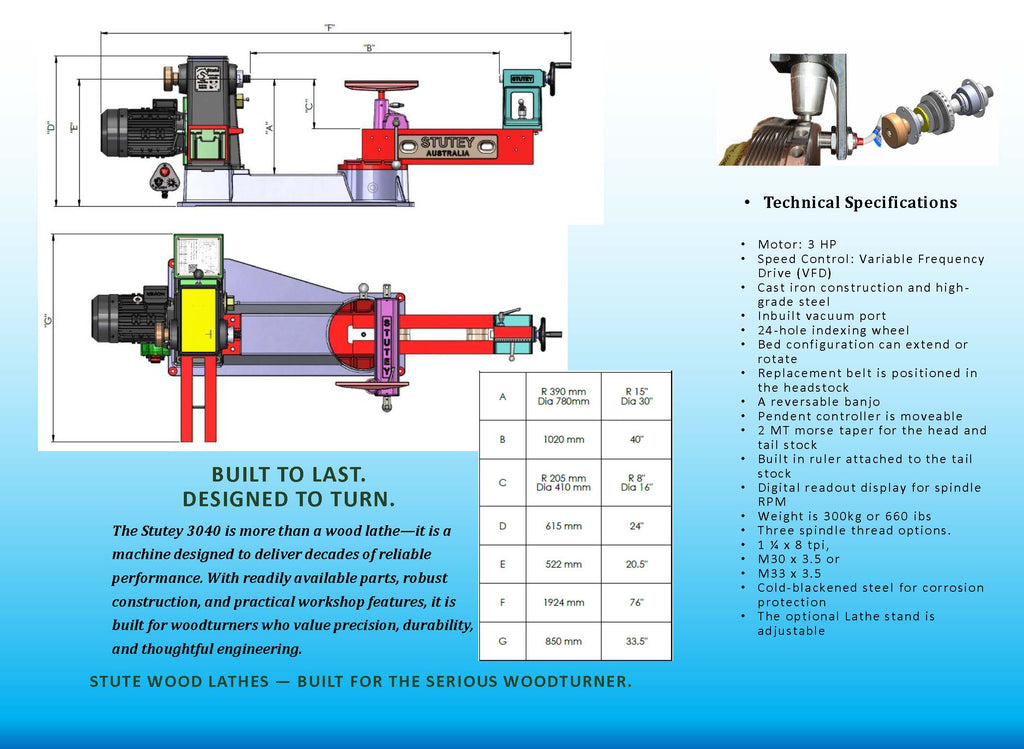

Motor	3 HP
Weight	300 kg/660 Ibs
Workshop Footprint	1130 x 440mm
Indexing holes	24 holes 15 degree
Speed Range - Low - High	0 - 1554 115 - 3223
Swing over bed - Standard - Extended	16 “ / 400 mm 30 “ / 750 mm
Between Centres - Standard - Extended	15 “ / 375 mm 40 “ / 1000mm
Spindle Thread - options of	1 1/4 x 8 M30 x 3.5 M33 x 3.5

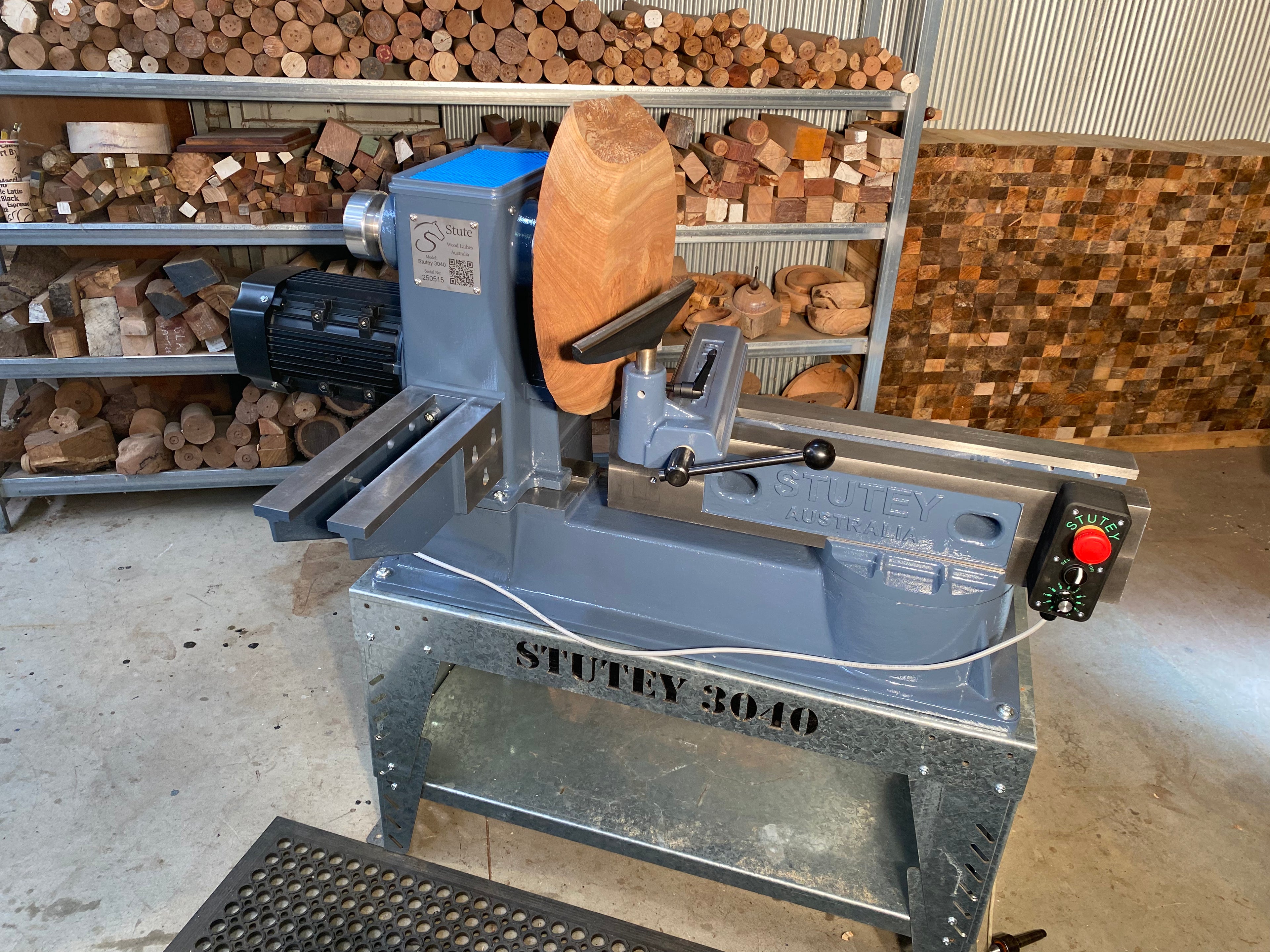

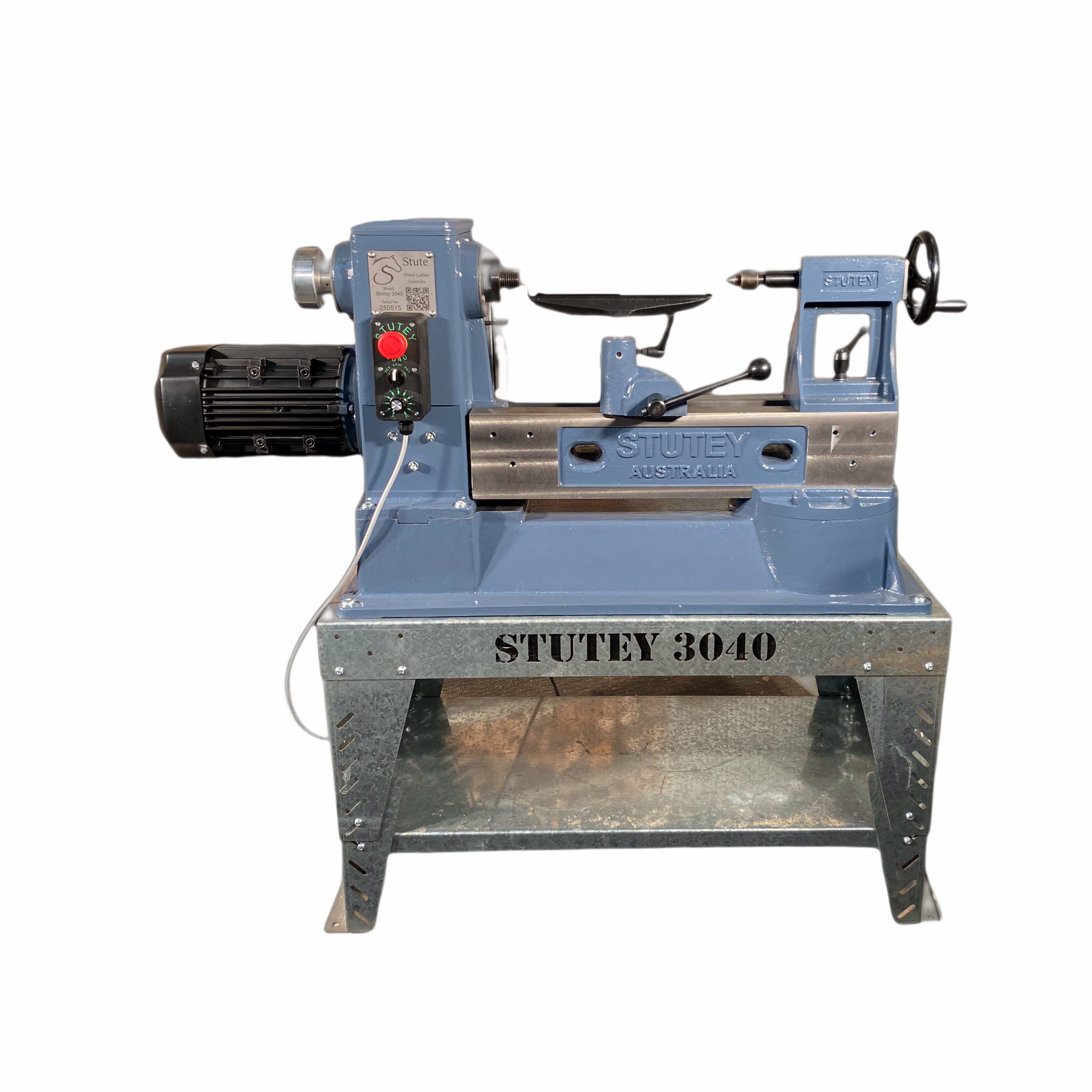

Lathe Stand is an optional extra

Send me an email and I will contact you regarding price and delivery of the Stutey 3040 to you
